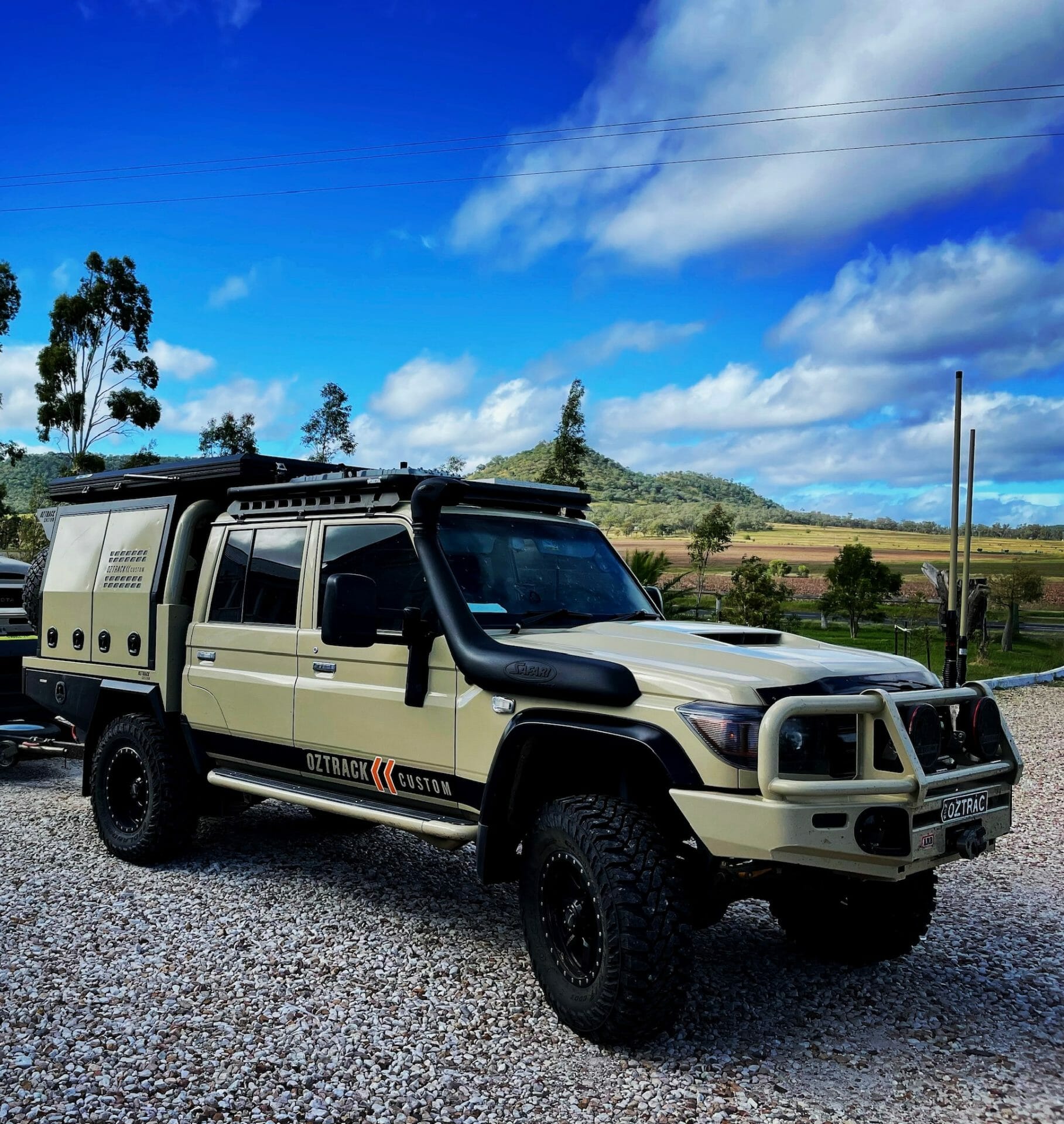

"OZTRACK 79 SERIES"

Vehicle Specifications

  • 3950kg GVM Upgrade - Old Man Emu 500 kg constant leaf springs with BP-51s
  • Airbag Man Kit, in cab controls ARB compressor

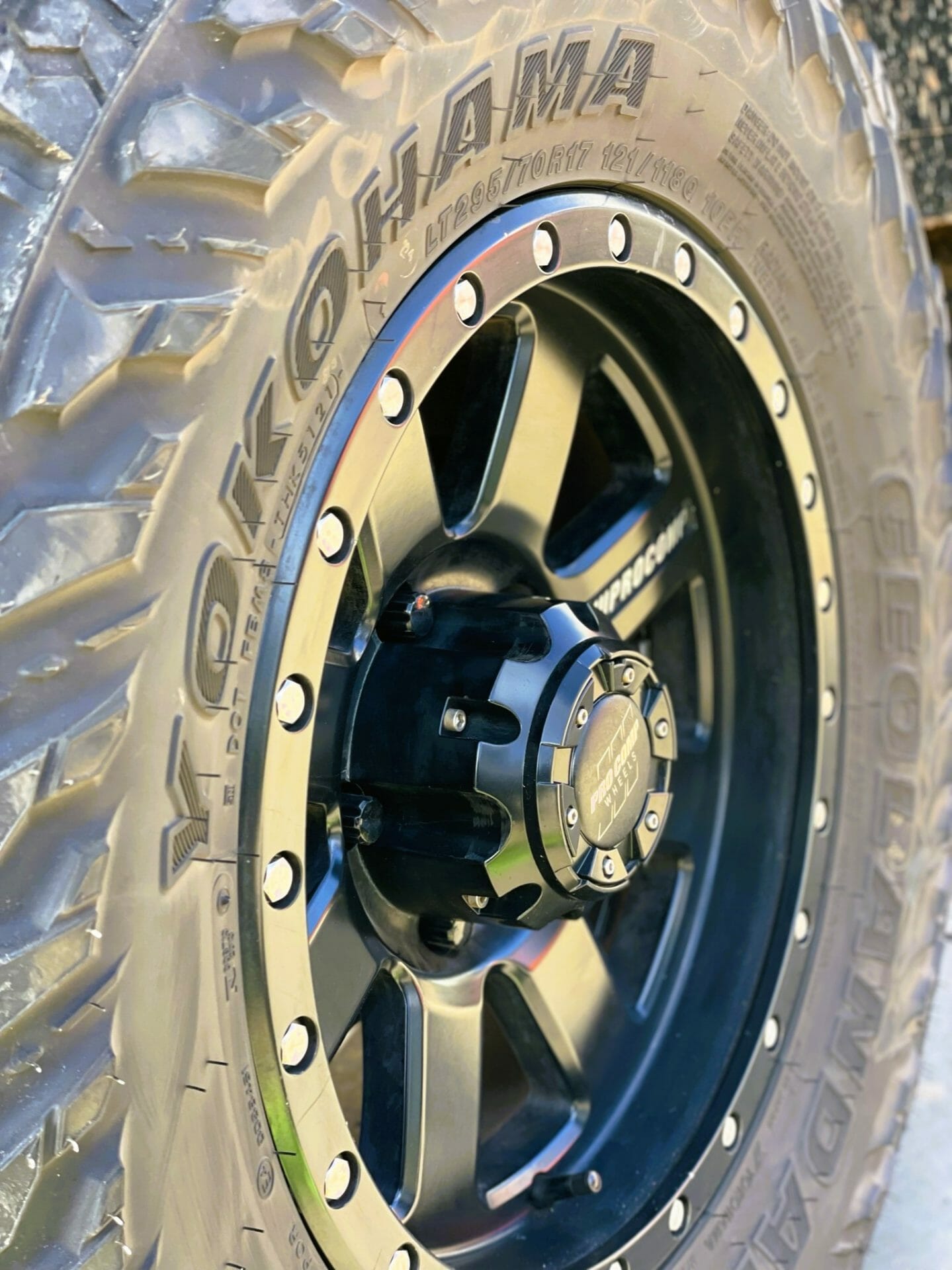

  • 6 x 17x8 Pro comp wheels - wrapped in 295/70/17 Yokohama G003 Muds

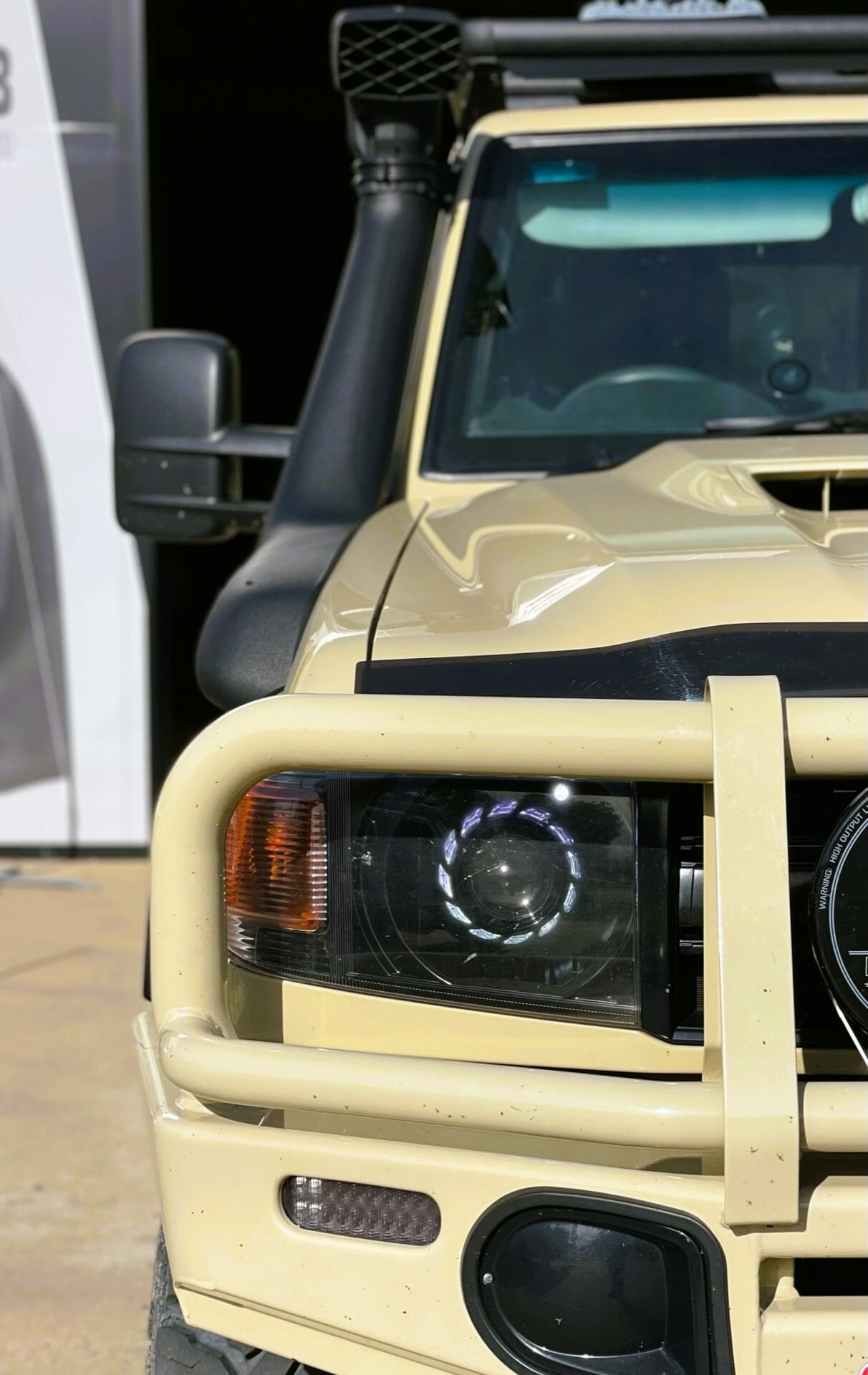

  • ARB Bullbar, colour coded
  • 12000lb Warn winch spoolBlaed with synthetic rope
  • ARB intensity driving lights with tinted covers
  • GME XRS uhf

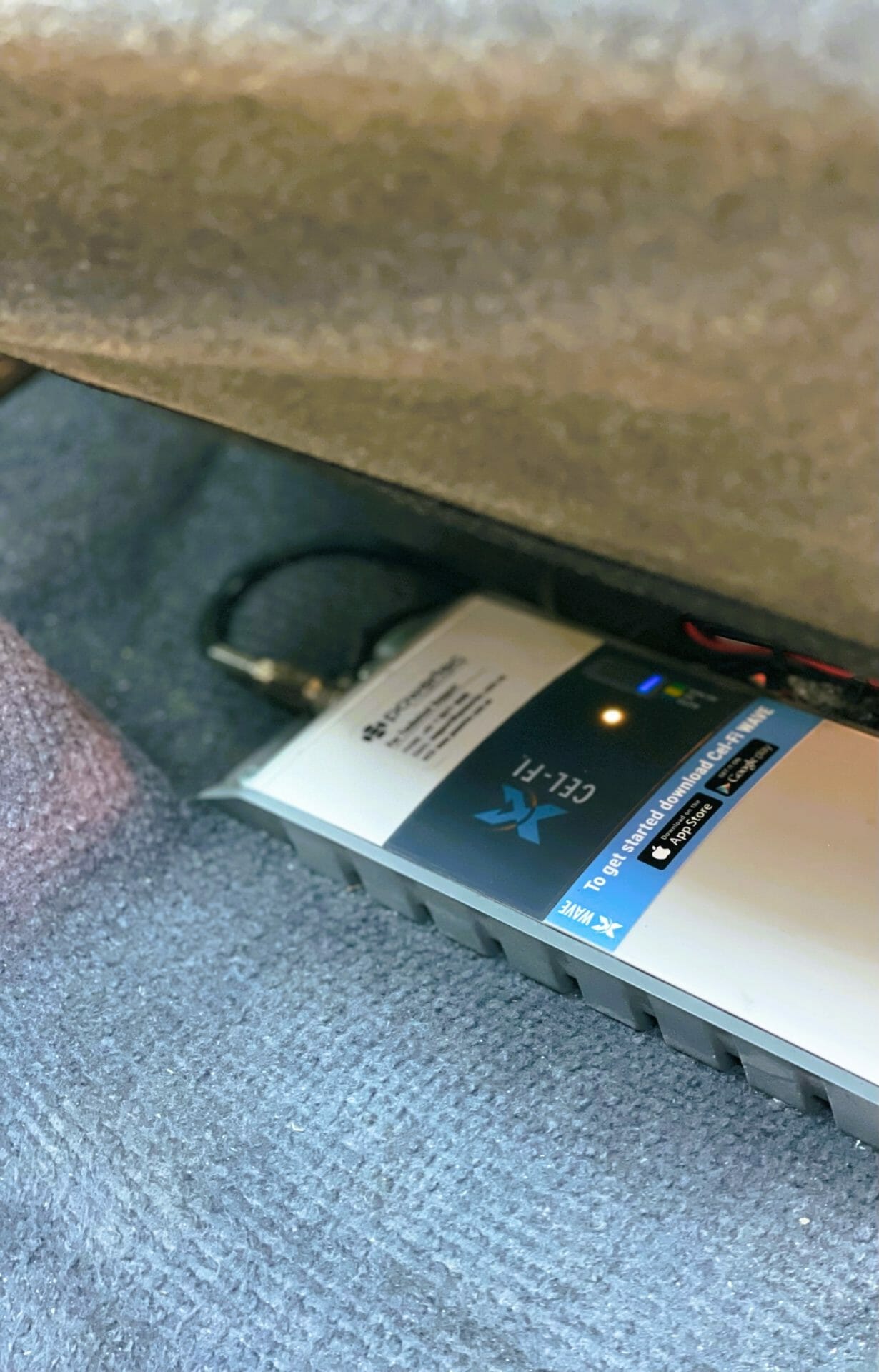

  • Celfi phone booster with RFI aerial
  • Micks HID Headlight upgrade
  • ARB side steps

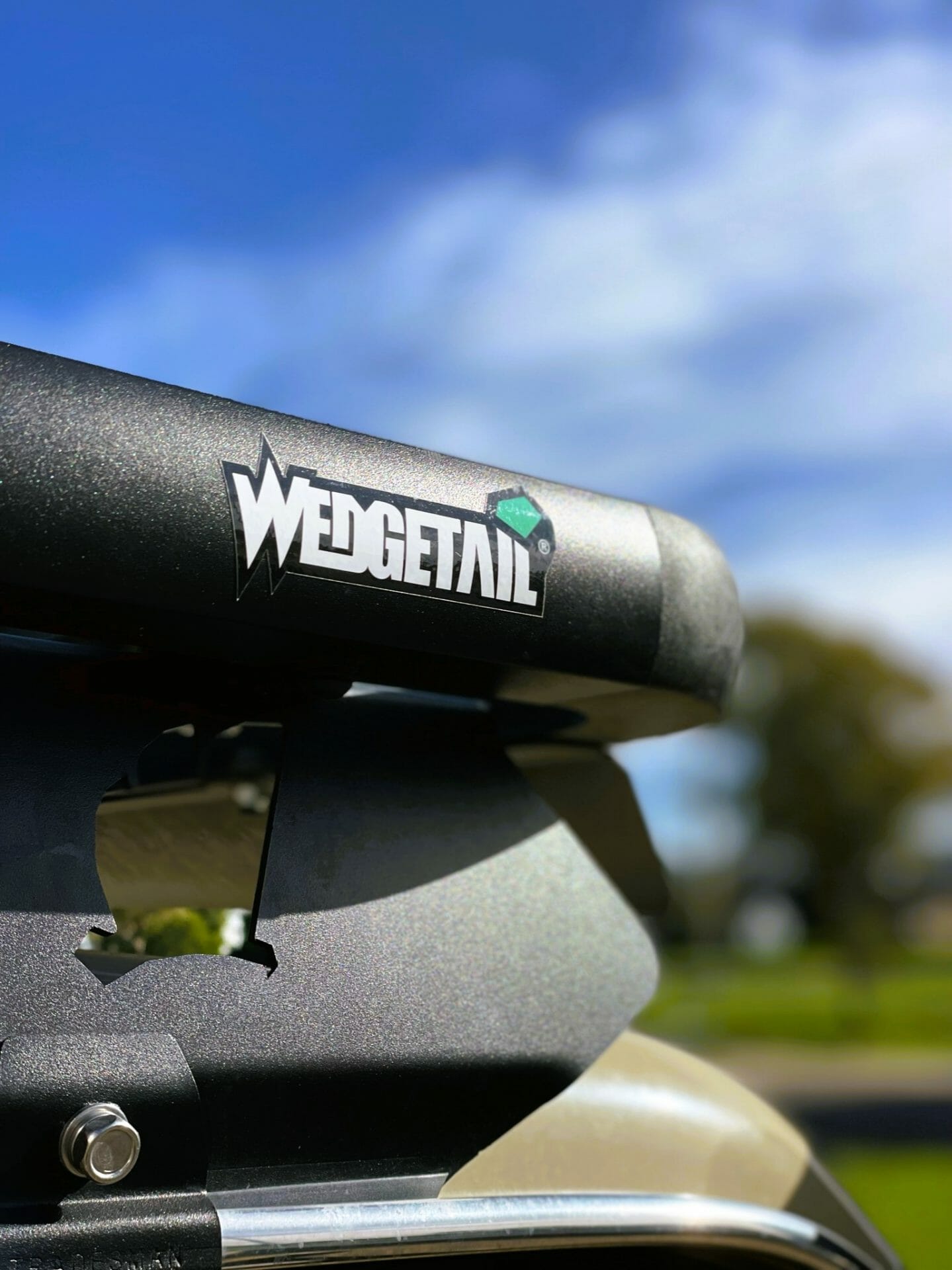

  • Wedgetail roof rack

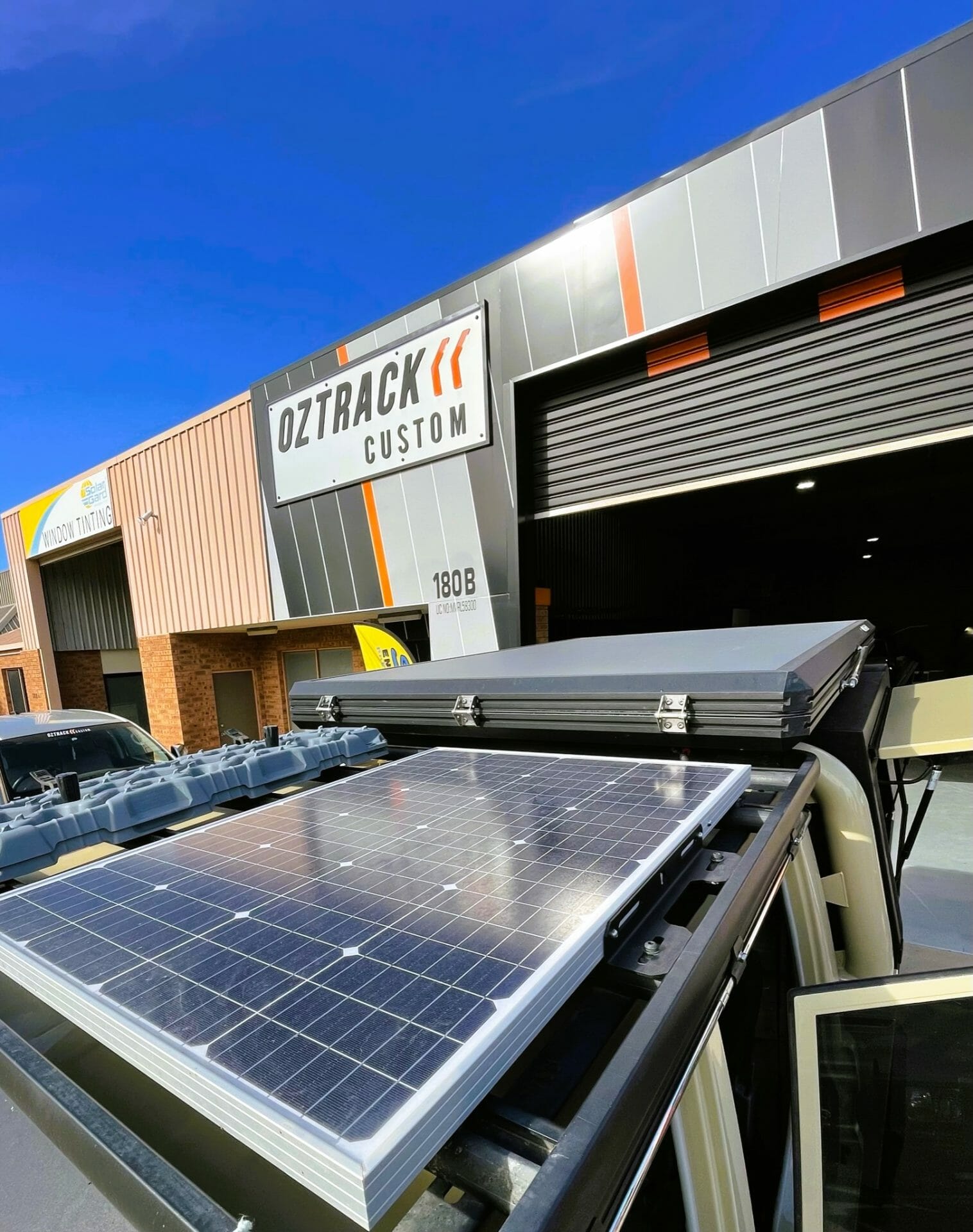

  • RedArc 120w solar panel

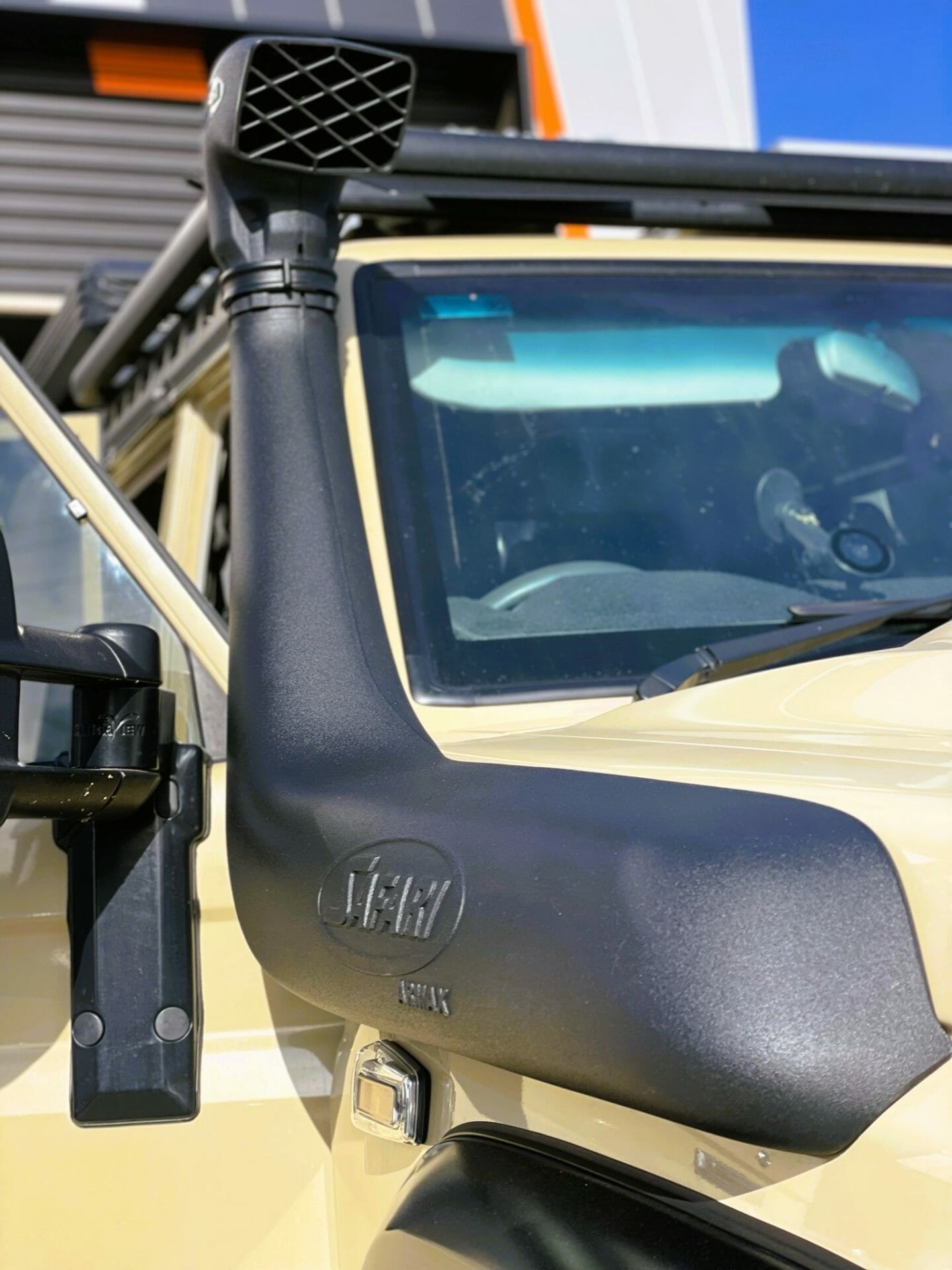

  • Safari Armax Snorkel
  • ClearView Towing Mirrors
  • ECU Remap, NPC 1800NM clutch & 3" Exhaust
  • Dual battery system - RedArc BCDC smart charger
  • Hayman Reese X-Bar
  • Alpine X308AU head unit (SatNav/ Apple play)

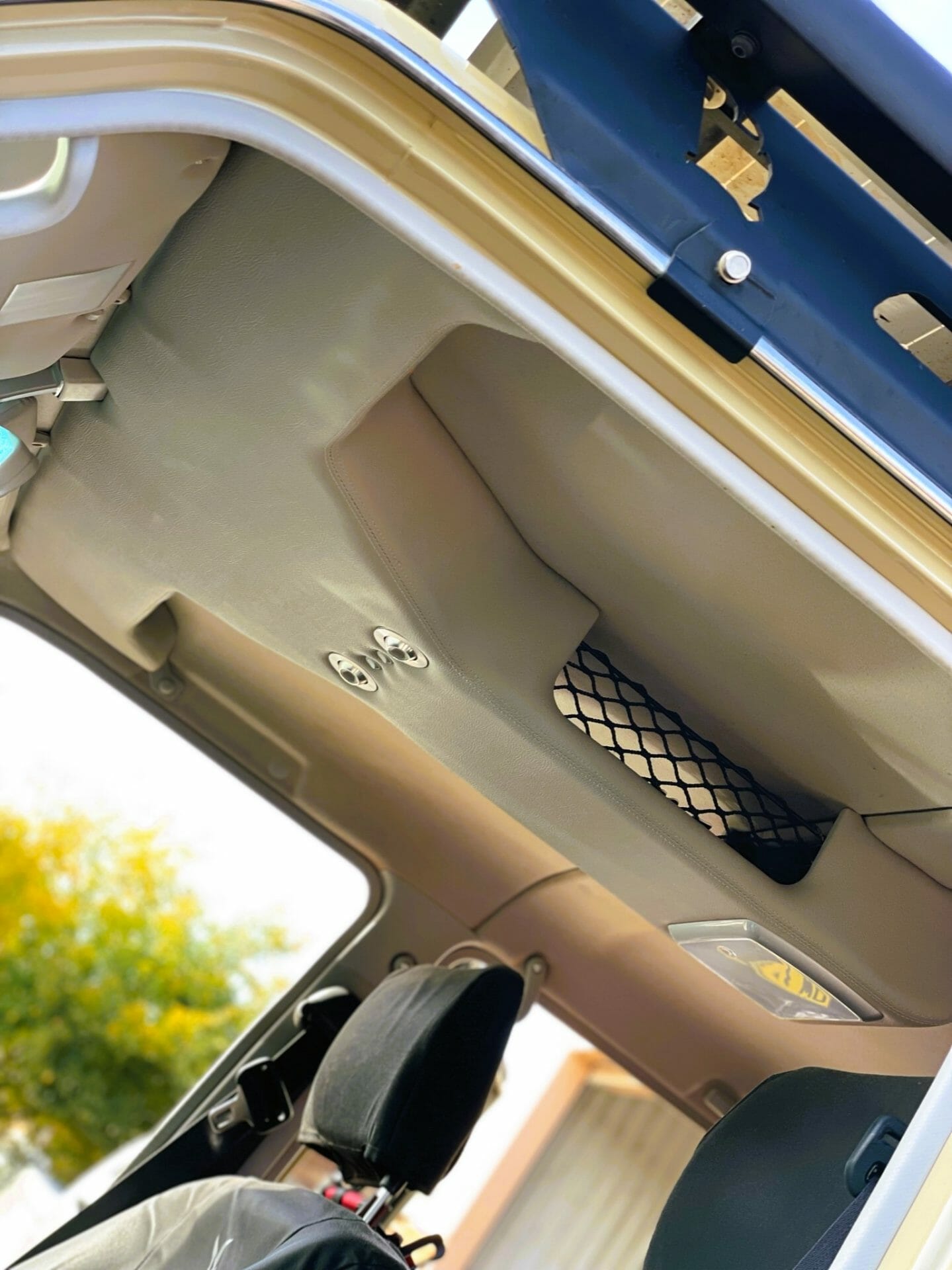

  • Department of interior T-Shape roof console

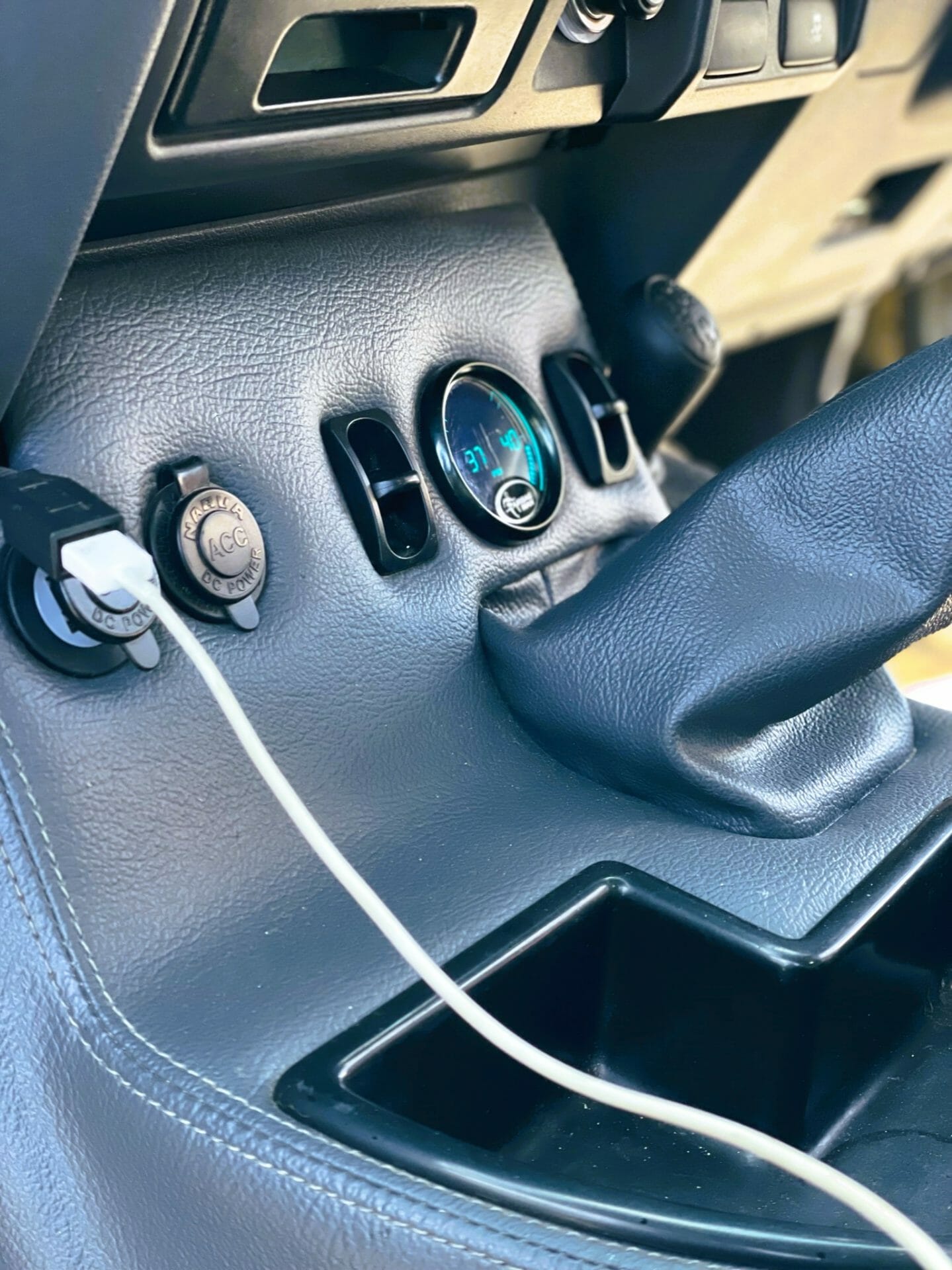

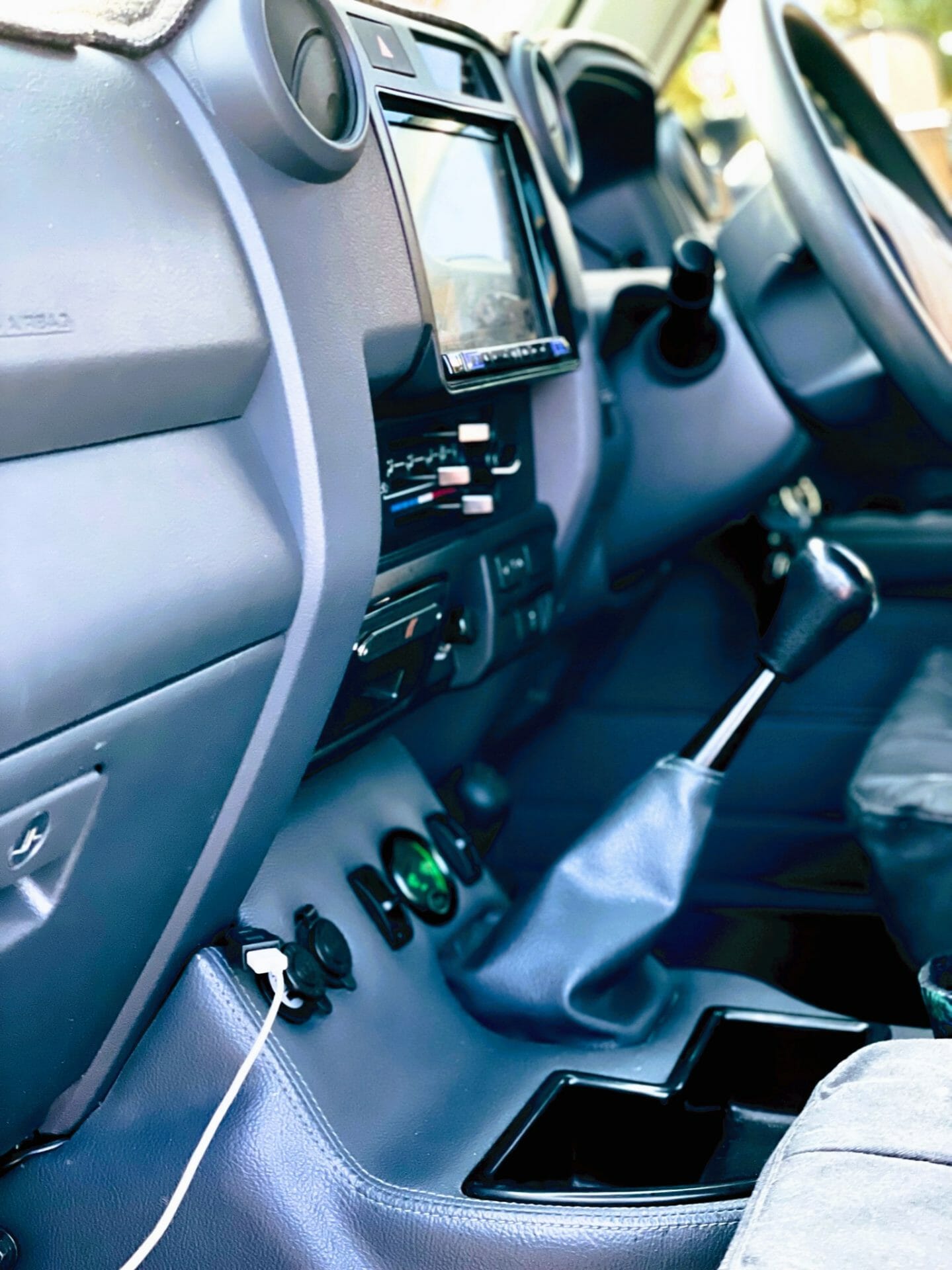

  • Department of interior Full length floor console

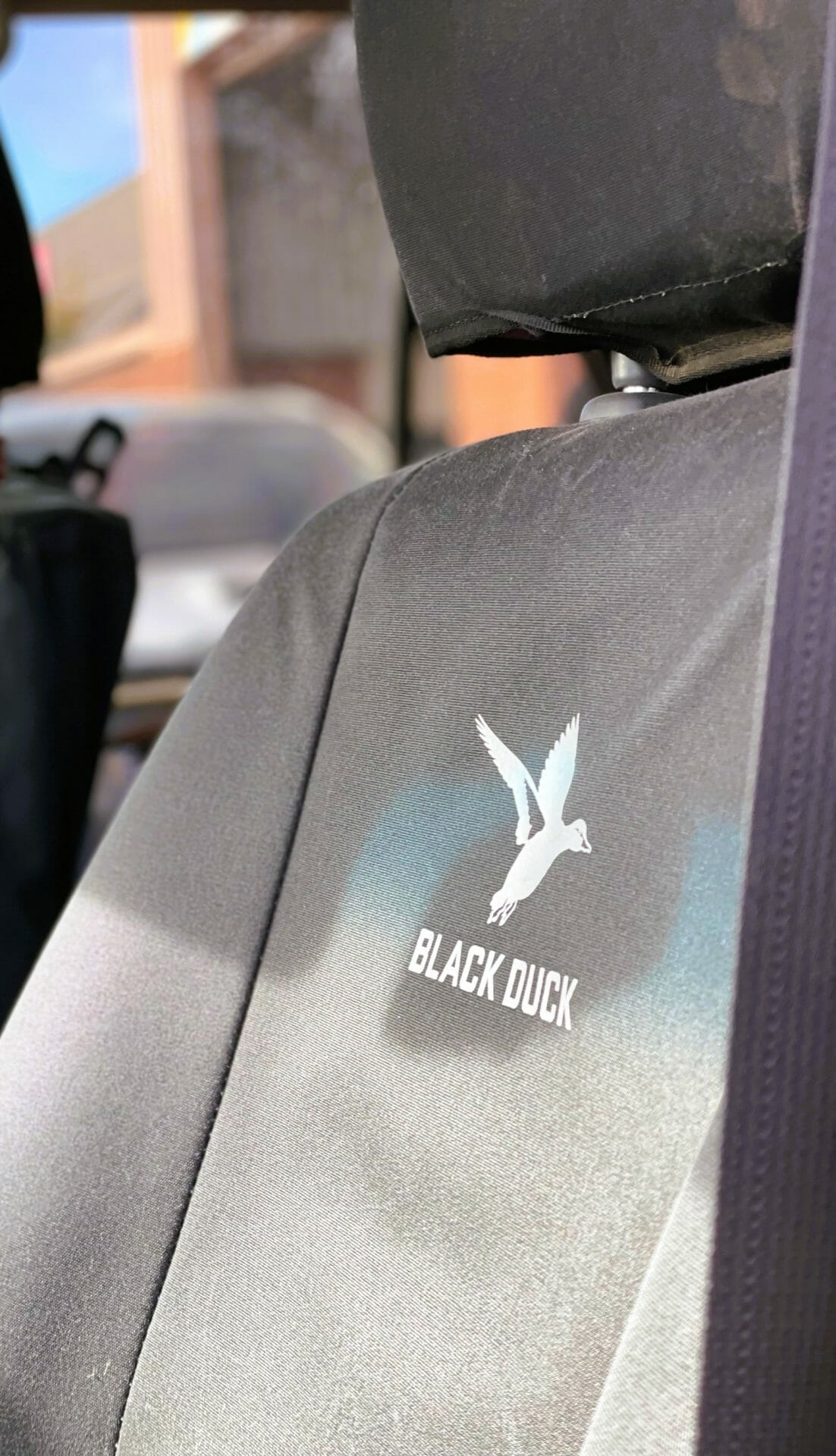

  • Black duck seat covers (front & rear)

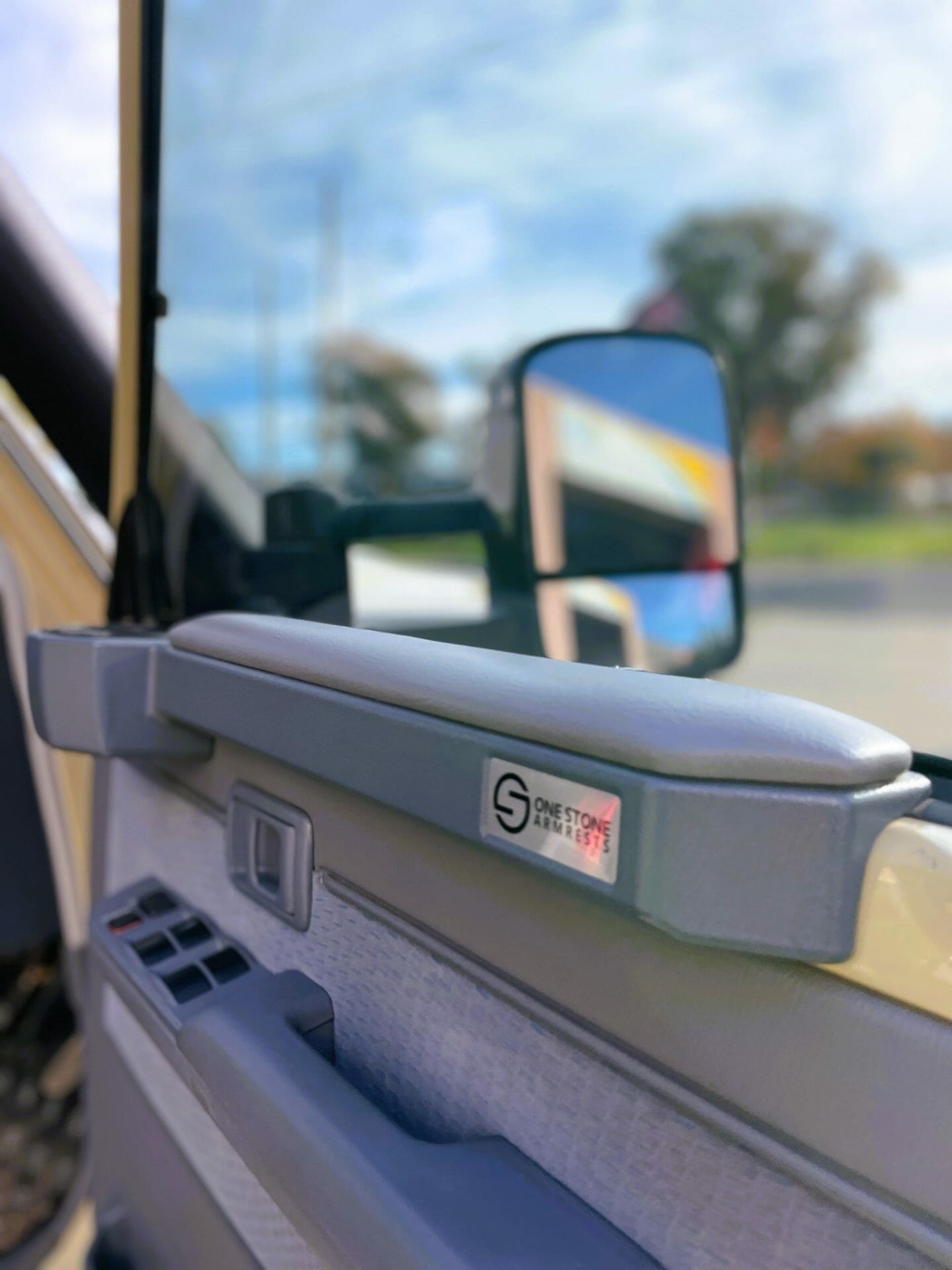

  • One Stone Armrests

Tray construction & specifications

  • Steel components - TRACK Edition base, Mudguards, Headbow, Tray mounts
  • Aluminium components - Trundle draw, Rear under tray boxes, Floor sheets (5mm)
  • Total weight 230kgs (dry)
  • 4" Mandrel bent head-bow
  • Tapered corners on rear of tray
  • OzTrack Custom head-bow infill
  • Tapered one piece flared guards

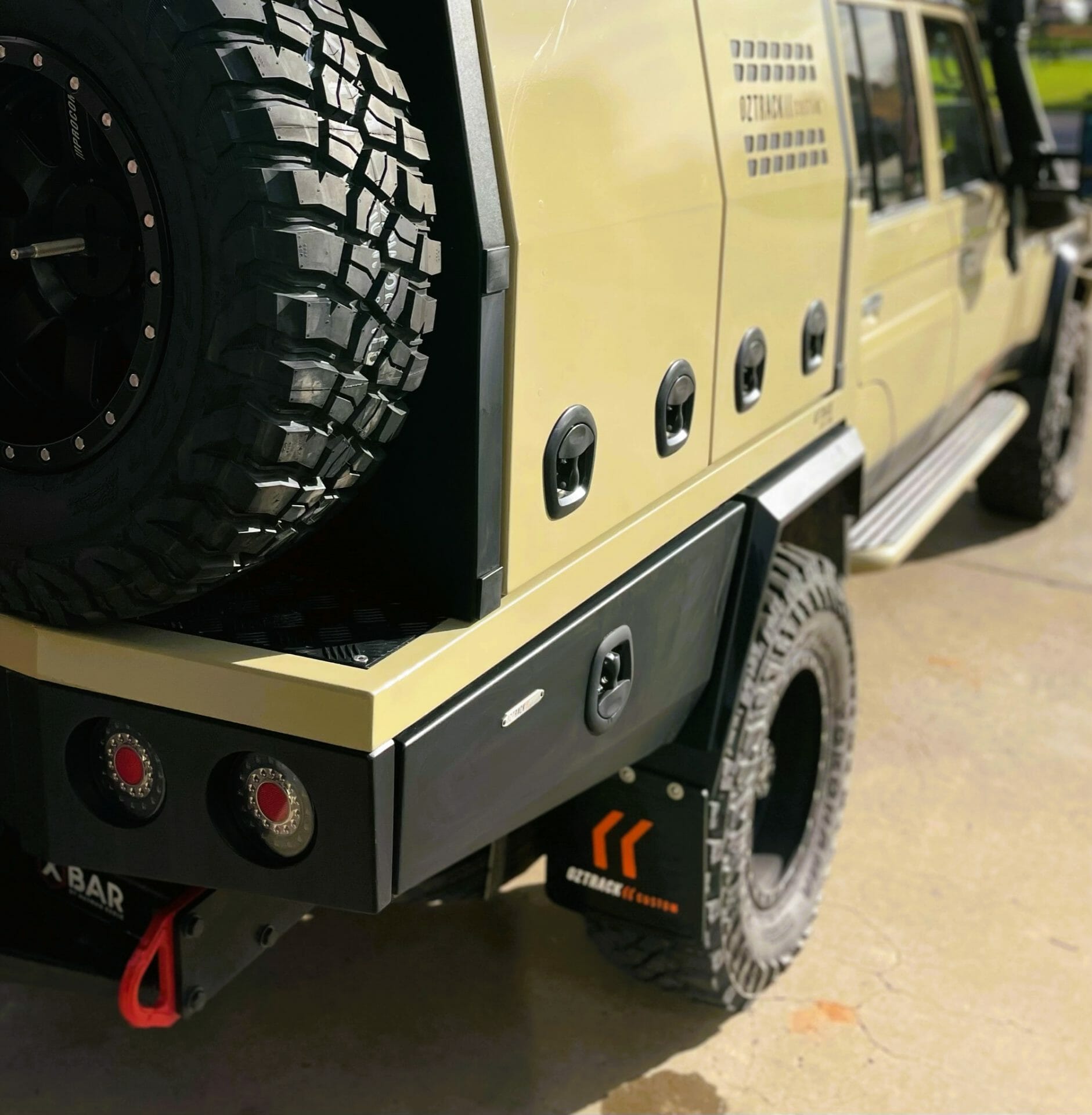

  • Rear double tapered under tray toolboxes

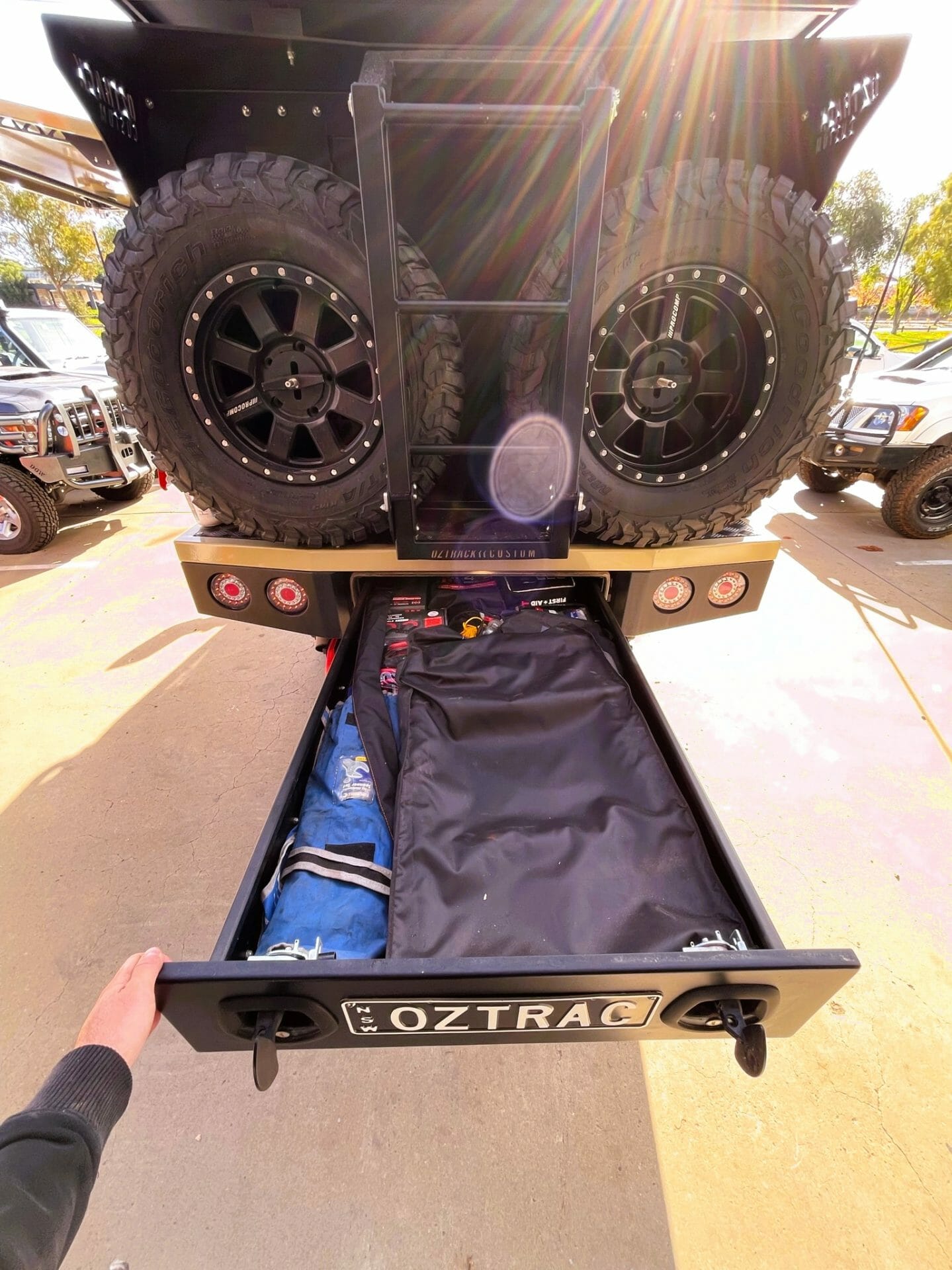

  • 1500mm trundle draw, heavy duty slides
  • Hidden fuel filler
  • 22ltr Poly water tank under tray

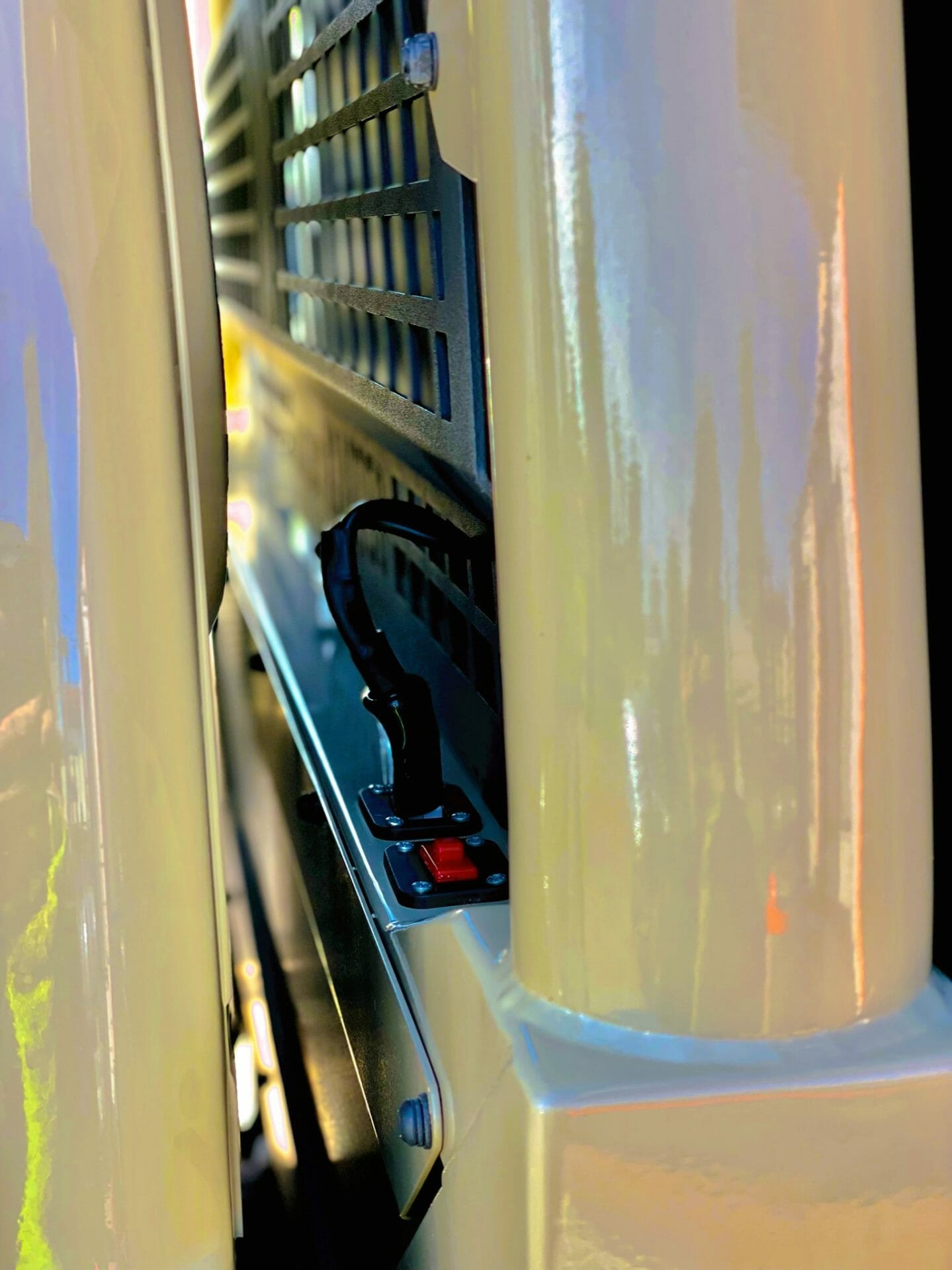

  • Quick connect air supply coupling fitted inside toolbox
  • Recessed LED tail lights
  • Rear facing STEDI light bars fitted to headbow
  • STEDI reverse lights
  • Rear ACC, canopy & solar Anderson's outlets, wired & flush mounted to headbow landing
  • Sandblasted, Primed & Powdercoated, Sandy Taupe with black features

Canopy specifications

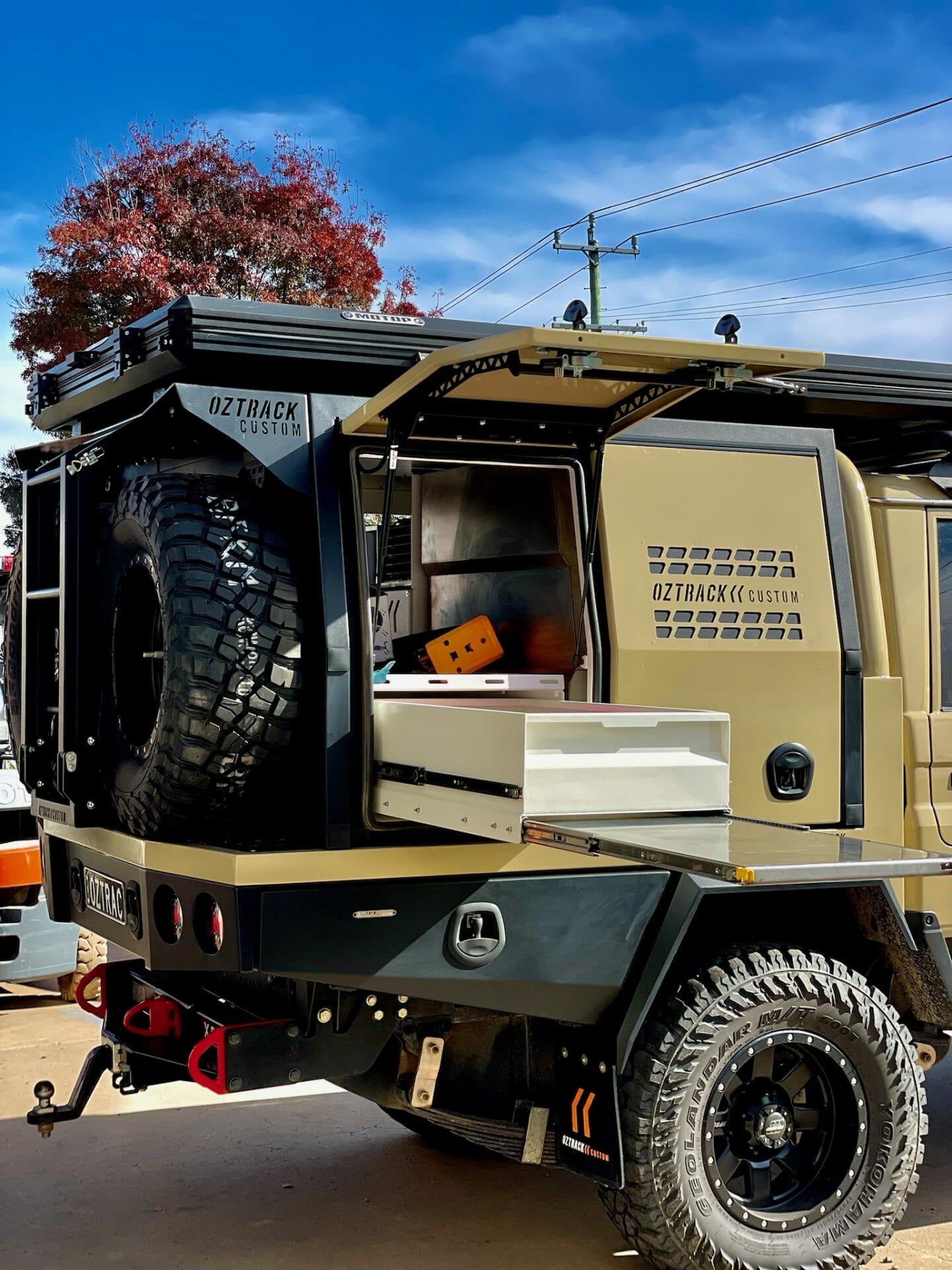

  • Lift off 3/4 canopy

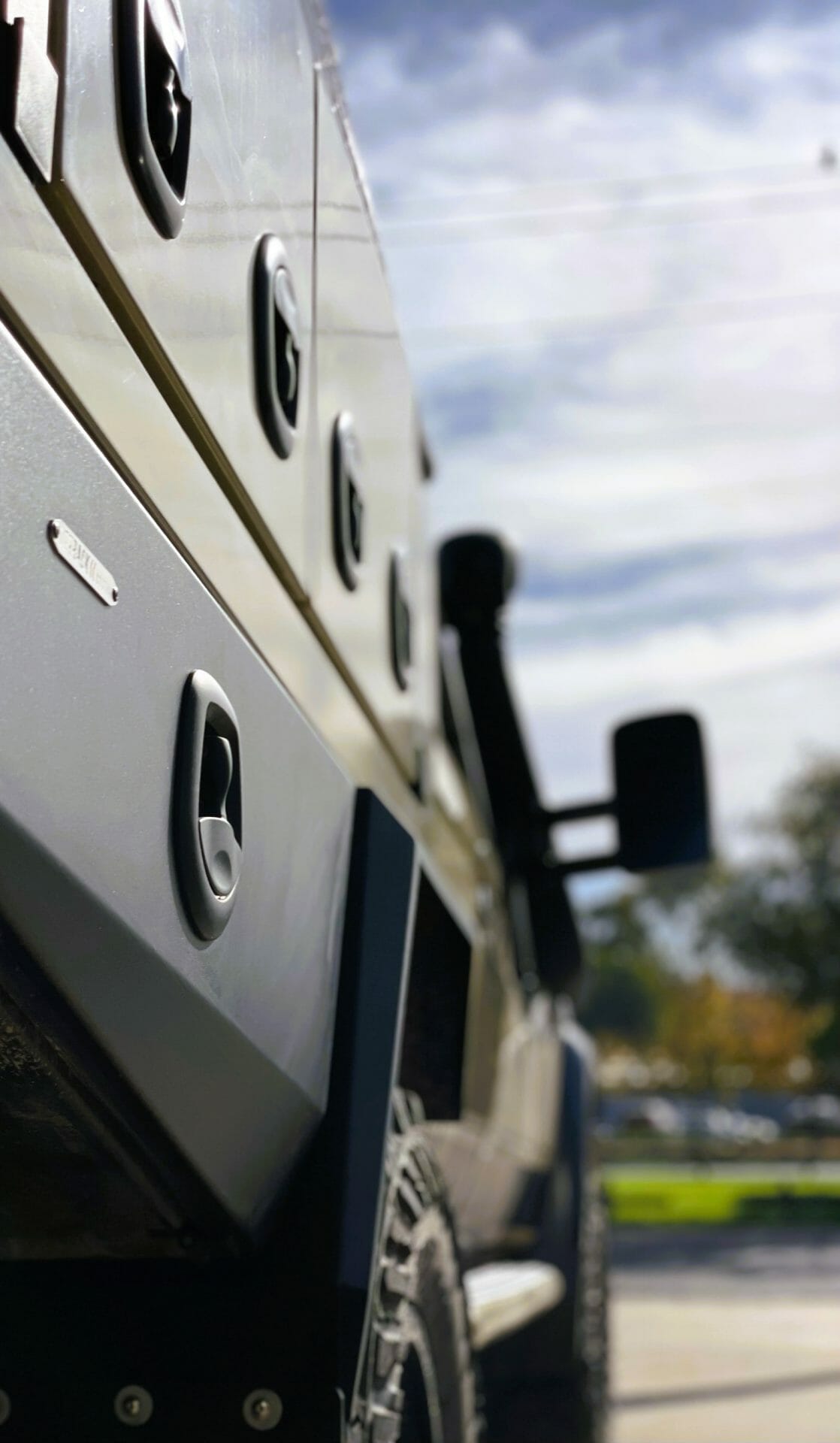

  • 3 X Door built from 3mm aluminum with 50X50X3mm SHS
  • Drivers side - Dog compartment or "Dirty gear area" fully sealed off from rest of canopy. Laser cut door for ventilation, removable panel to allows this area to be used for storage if required, drain points to allow area to be washed out.

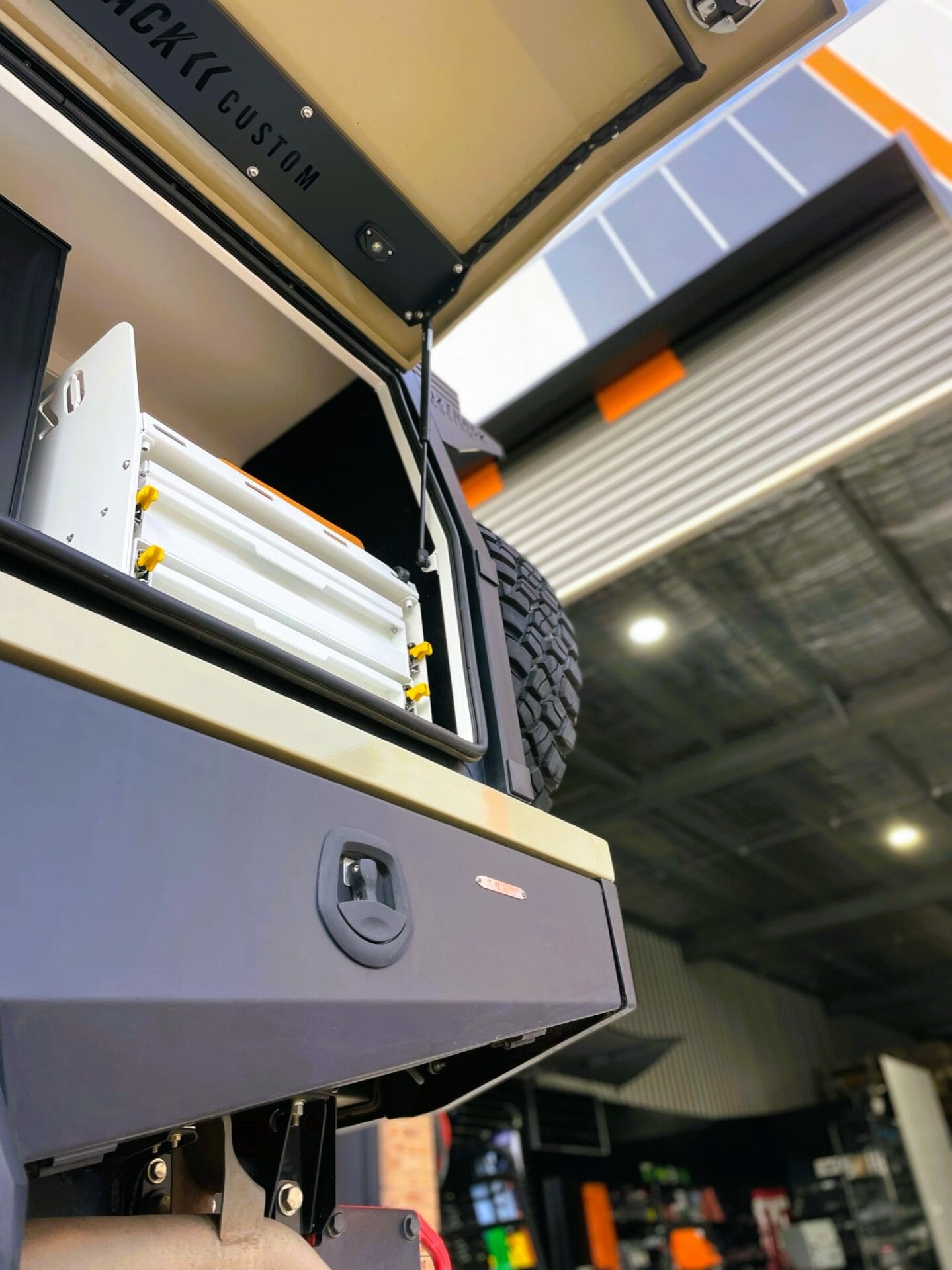

  • Drivers side rear door - Draw with stainless steel sliding bench fitted below

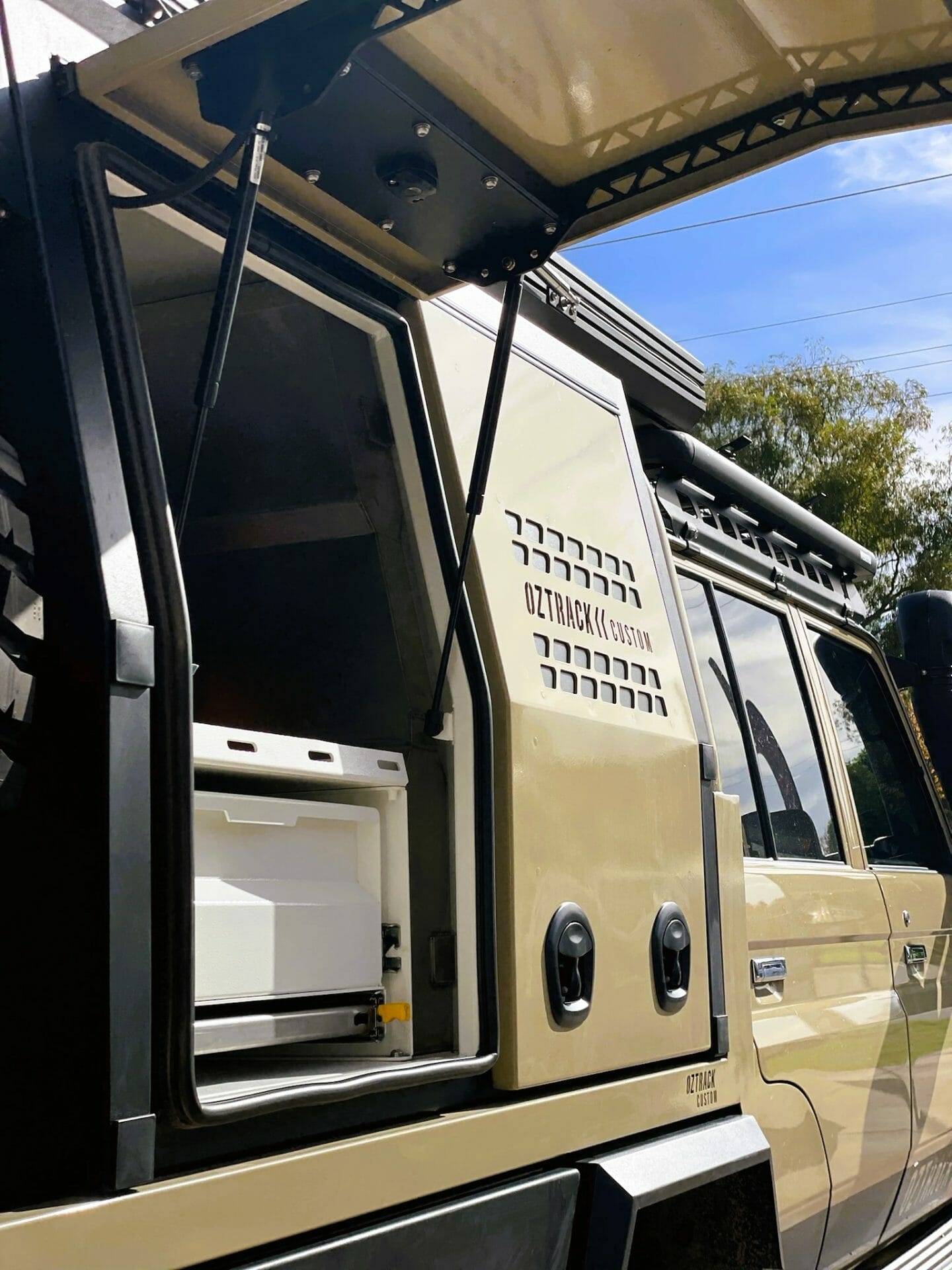

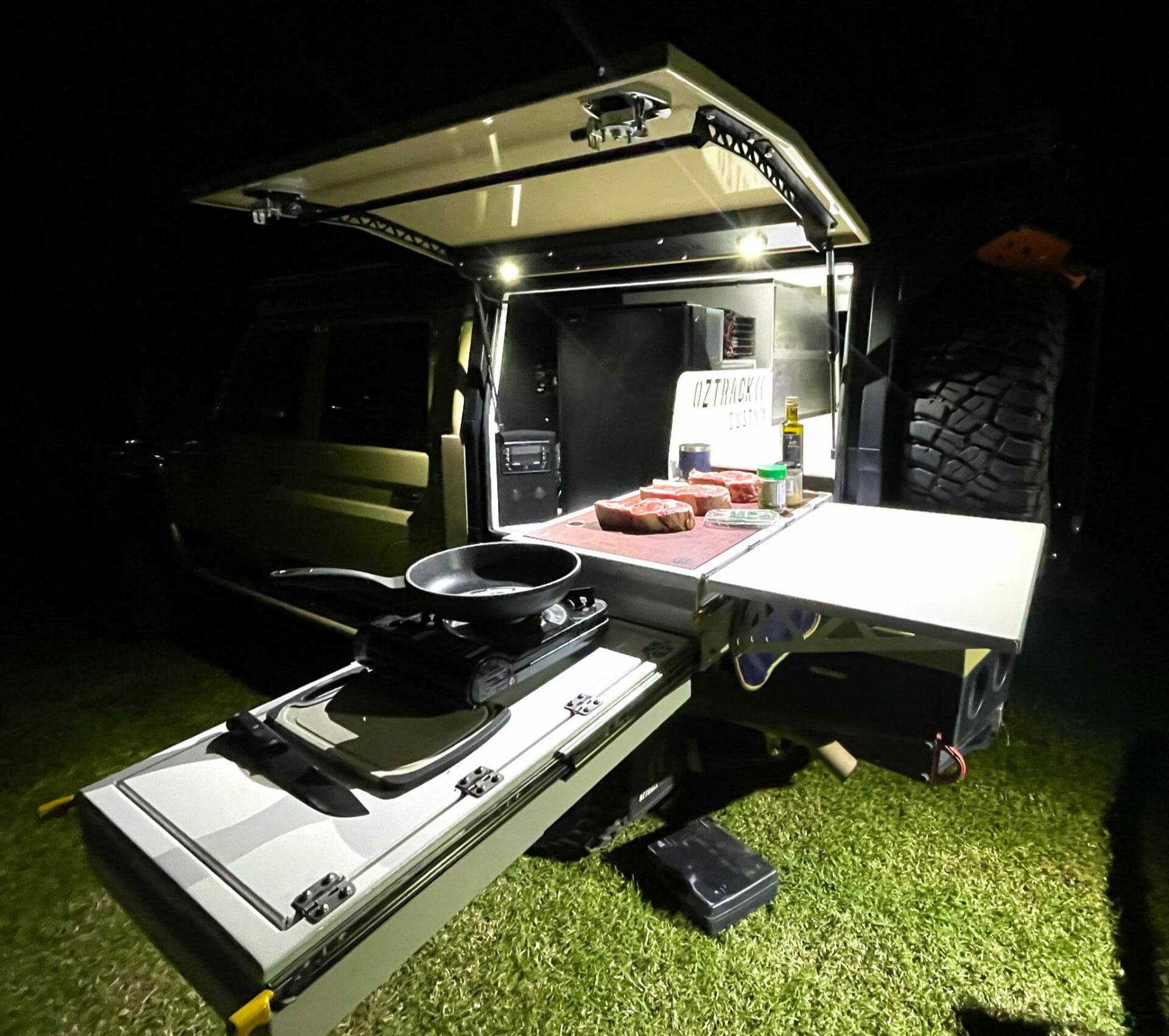

  • Passengers side - Kitchen
  • 130ltr Bushman upright fridge, with a multistage slide out draws for prospect and storage with custom crafted chopping board
  • 80ltr stainless water tank mounted beside dog compartment wall
  • Roof extension on rear wall (external) giving a larger surface area to mount accessories - roof top tents, roof racks, boat loaders

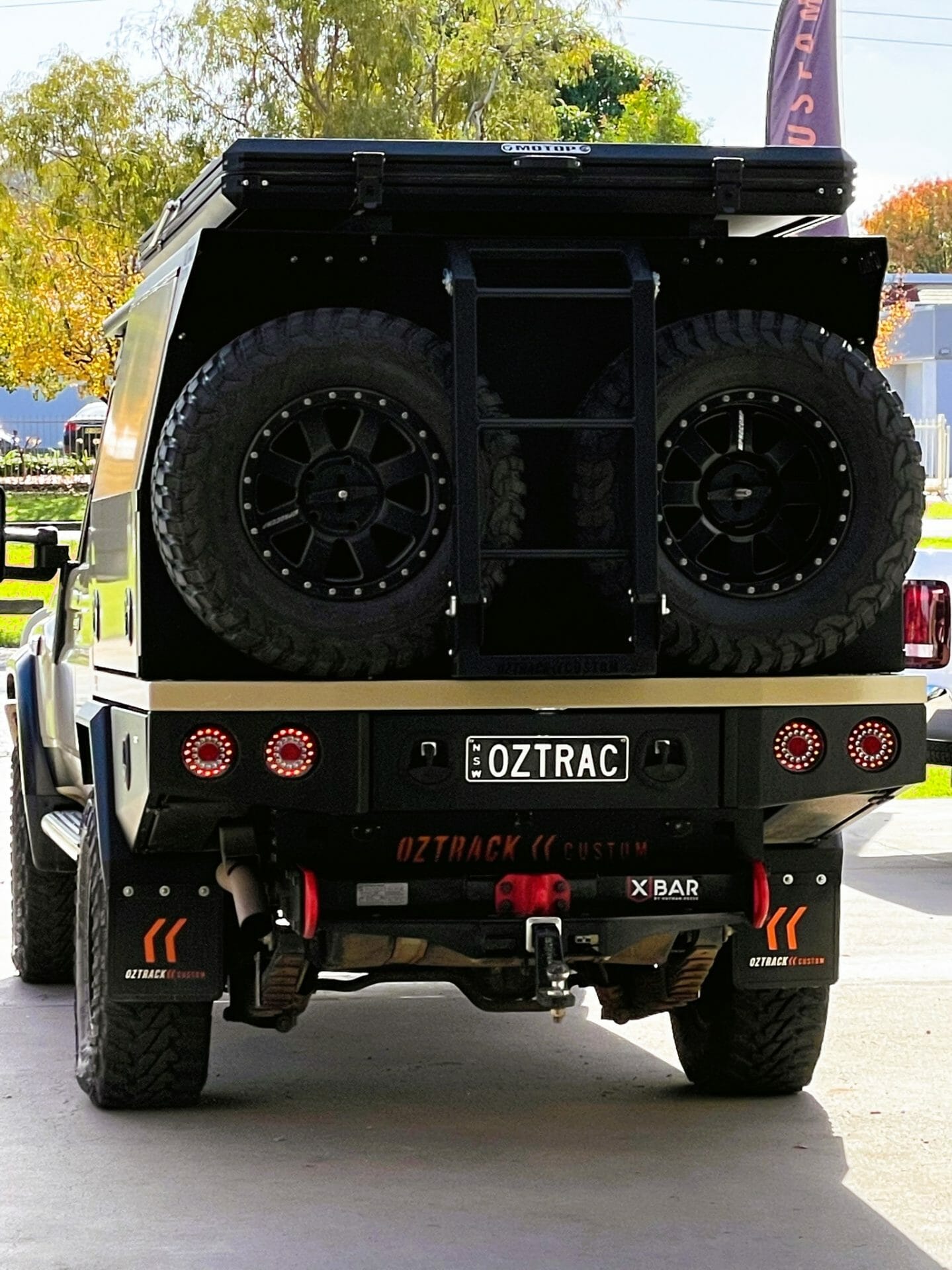

  • 2x spare wheel holders mounted to rear wall
  • Rear folding ladder

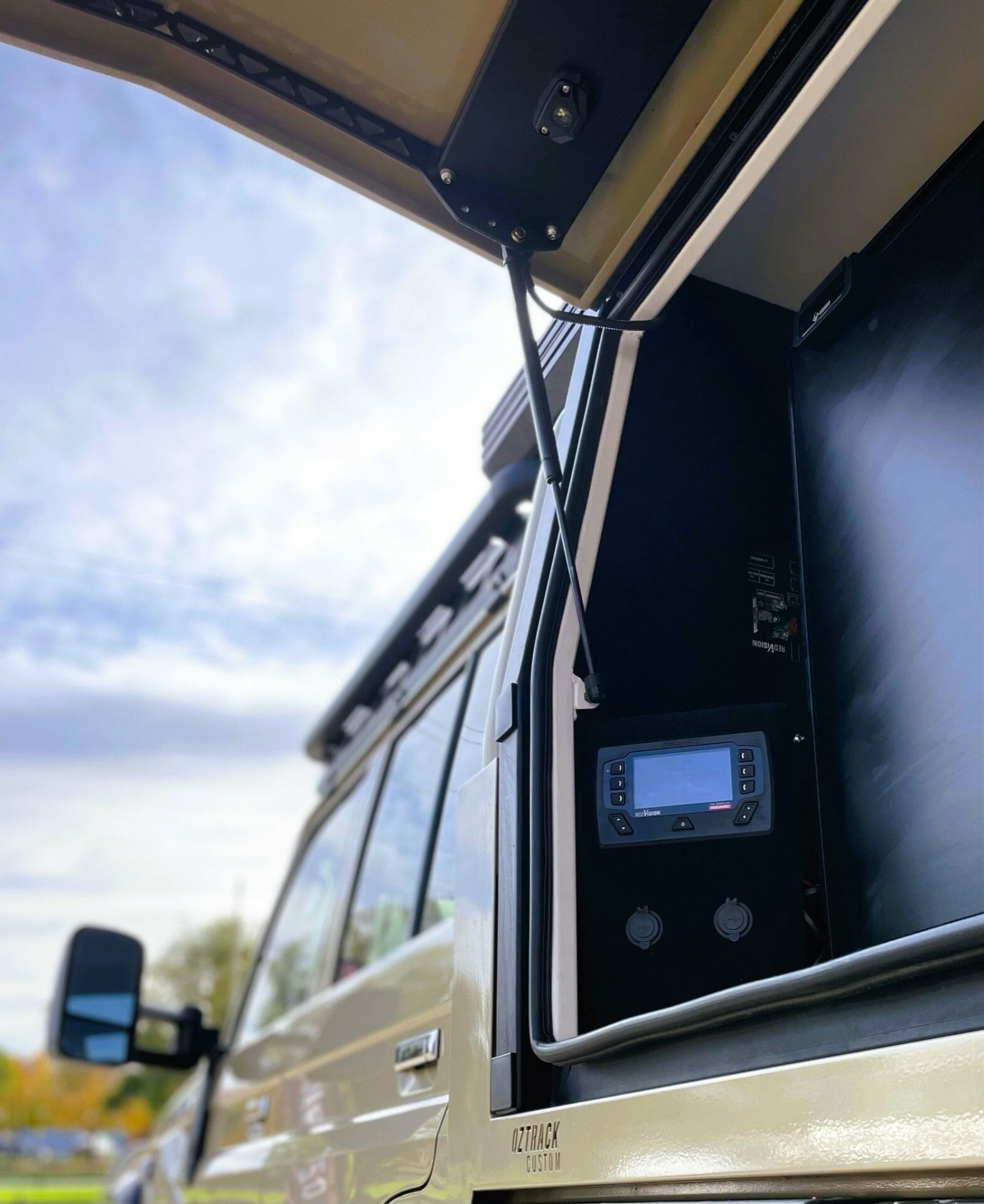

  • RedArc RedVision running all electrical, switching/ monitoring can be done via RedArc phone app

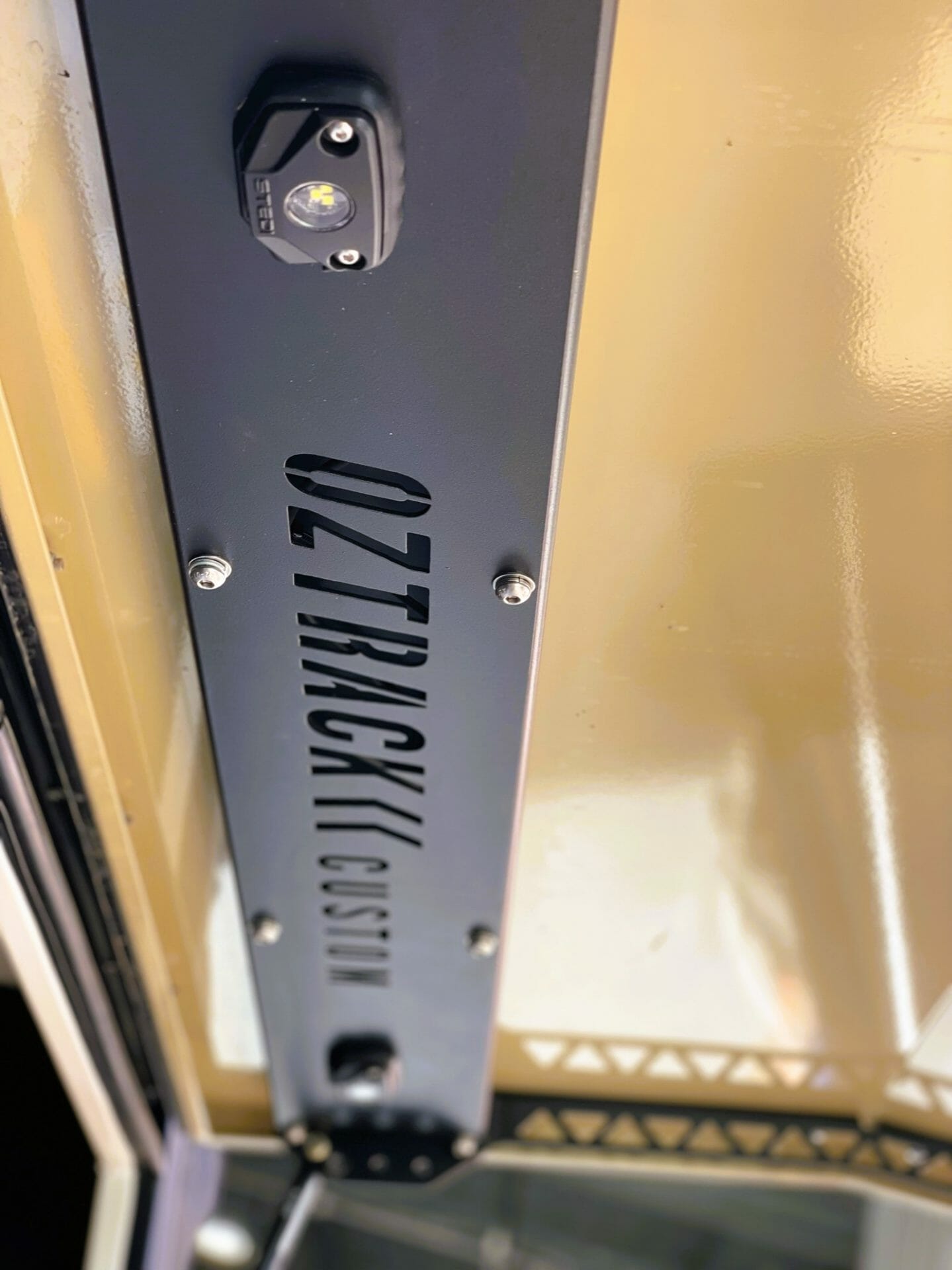

  • STEDI lighting throughout, individually switched
